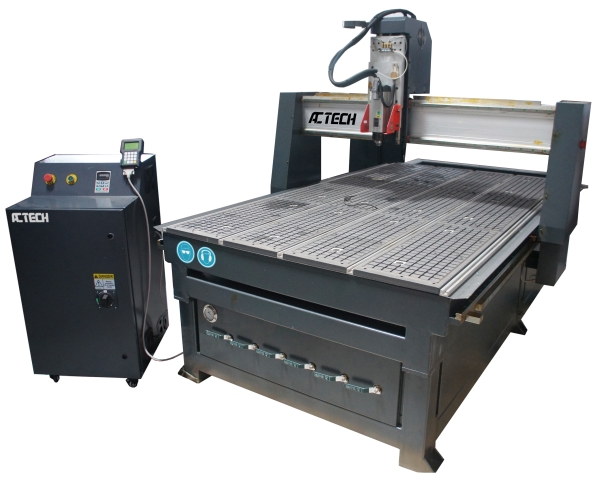

ACMS1325C CNC ROUTER (for Wood Working)

ACMS1325C CNC ROUTER (for Wood Working)

CNC ROUTER FOR WOOD WORKING, ADVERTISEMENT INDUSTRY

This CNC router with ATC (Automatic Tool Changer) and servo system (Yaskawa servo motors and drivers). It is mainly used for wood workingand can save time change the tools. It is move convenient to the wood working factory to make different designs.

In corporate with a Hong Kong-China Joint venture company, we are started to enroll to the world of CNC Routers.  Through the years experience as cnc machine manufacturer, we strongly confident that the superb technical back-up will give an extraordinary service to you.

In the series of router machines, there are different type of design and specification that ultimately suit you the most.  In ACG Series, the machine structures are design with cast steel and mostly with Germany ball screws transmission for x, y & z axes.  ACG series suit to the most advertising industry.

ACM series are built to be rugged and rigid that highly appropriate to wood working industry.  The structures are all welded by hollow steel pipe and moves through rack and pinion transmission.  It always equipped with Italy HSD Electro-spindle which achieve a high degree in engraving performances.  ACM series may also include the vacuum table system which will enhance your initial set up.  Indeed, it is worthwhile highlighted about the ACMS1325C and ACMS1224D in which the machineries equipped with the auto tool change system and branded servos system.

Drive motor : Japan Yaskawa servo motor for all axes.
Description Parameter
X, Y, Z Working Area 1260x2500x200mm
Table Size 1320x3040mm
X, Y, Z Traveling Positioning Accuracy ±0.04/300mm
X, Y, Z Repositioning  Positioning Accuracy ±0.05mm
Table Surface Vacuum system
Frame Steel Tubes
X,Y Structure Rack and Pinion Drive.Hiwin Rail Linear Bearings
Z Structure Ball screw,Hiwin Rail Linear Bearings
Maximum Power Consumption (Without spindle) 5Kw
Max Rapid Travel Rate 32000mm/min
Max Working Speed 20000mm/min
Spindle Power Motor 8.0Kw SHD Air cooling Spindle
Spindle Speed 6000-18000RPM
Drive Motors Yaskawa Servo Motors and Drives
Working Voltage AC380V / 50 / 60 Hz (option 220v,3th)
Command Language G Code
Operating System DSP System
Interface USB
Flash Memory 128M(U Disk)
Collet ER25
X,Y Resolution <0.01mm
Software Compatability Type 3 Software , Wentai software , Artcam software
Running Enviroment Temperature : 0'C~45'C.Relative humidity : 30%~75%
Packing Size Separated: 3200x1960x1340mm Integrated : 3200x1960x1870mm
Net Weight 1050kg
Gross Weight 1300KG
All parameters above subject to change without prior notice
