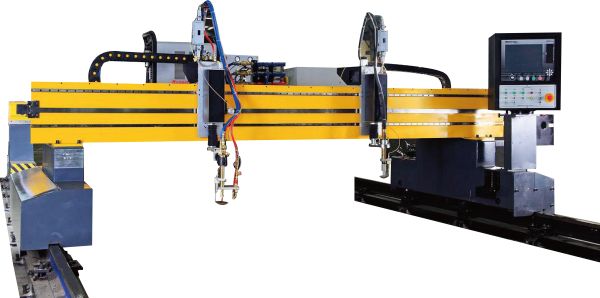

ACTECH GIGA - GANTRY TYPE CNC PLASMA / FLAME CUTTING MACHINE
ACG3000 – CNC GANTRY CUTTING MACHINE (HEAVY INDUSTRY)
The gantry type CNC plasma/Flame cutting machine by ACTECH delivers high quality small holes with excellent cut quality and high performance. The new range of ACTECH Giga machine incorporates all the latest Hypertherm plasma cutting technology including True Hole technology. ACTECH Giga features an all steel welded gantry delivering rigidity and stability. These machines are suitable for precision cutting in the most demanding of applications.
- Rigidity, Excellent Stability
- Meticulous Plasma Cutting
- High Precision, High Oriented
- CNC Control (Complex Shaped Pieces Cut)
- Dual drive servo motor
|
|
| Rail distance(mm) |
4000 - 12000 |
| Effective cutting width(mm) |
1000 less than rail distance |
| Rail length |
Customer’s requirement |
| Effective cutting length(mm) |
2500 less than rail length |
| CNC torch number |
1 – 4 |
| Strip torch number |
Customer’s requirement |
| Rapid travel speed |
12000 mm/min |
|
| |
 High Precision Linear Guides |
|
Panasonic Servo Motor
|
|
Germany Neugart Gearbox
|
Recommended High Definition Plasma Cutting Systems :

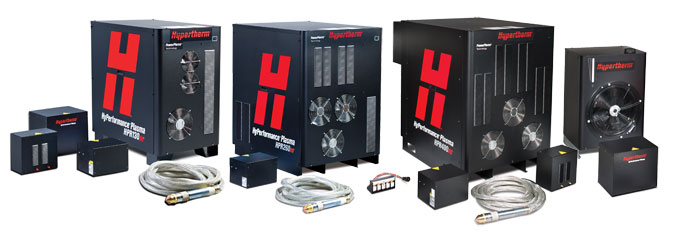

Hypertherm® HPR130XD™, HPR260XD™,HPR400XD™

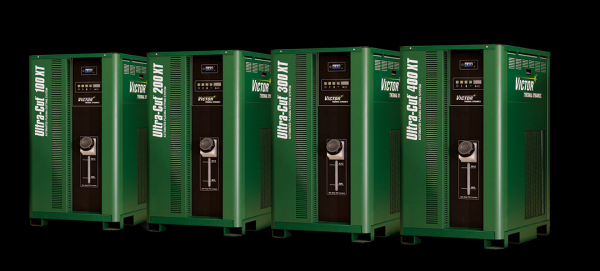

Victor ® Ultra-Cut 100XT™,® Ultra-Cut 200XT™, ® Ultra-Cut 300XT™ ®
|
