NANO INTECUT CNC PLASMA

Nano Intecut CNC Plasma

Features:
Light weight, Moveable
May install either Plasma or Flame (OXY-LPG) Torch.
CNC Controller c/w 7" Color LCD display.
Equipped with THC(Plasma) & CHC (Flame).
Extruded Aluminium profiles as Gantry structures
Least setup time
Turning cover design enhance simpler maintenance & service.

Description:
'Nano Intecut' series essentially designed to suit our customer no matter which corner you are locating thoughout the world. It has been designed associated with features of flexible, easy to install and operate (Plug-N-Play), mobile machine, least foot print which solves your space constraint, practical for home and light industrial workshop uses.
Benefits of the cantilever design:
Nano Intecut contilever design is flexible and user friendly. The contilever design provides the following benefits:
Easier access to torch
Fast set-up
Ability to load oversized plates
Easy unloading or parts picking

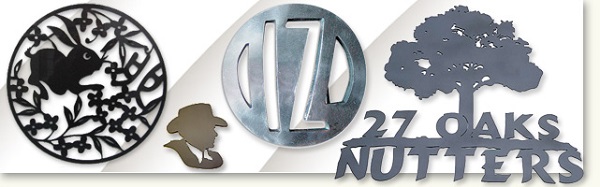

Cutting sample:
Nano Intecut Cutting Sample
Specifications:
Model Nano Intecut 1220 Nano Intecut 1234 Nano Intecut 1634
Input Voltage
220V
Frequency
50 or 60Hz
Input Power
180w
Monitor
LCD 7" with keyboard
Effective Cutting Size(W*L)
1200*2000
1200*3400
1600*3400
Moving Speed
Idle Speed: 0-3000mm/min
Flame Cutting Speed
Cutting Speed: 6-750mm/min
Transverse Arm
1700mm
1700mm
2200mm
Rail Length
2500mm
4000mm
4000mm
Total Weight
70.9kg
80kg
90kg
Cutting Mode
Plasma/Flame
Gas
Oxygen
Cutting Gas
Acetylene, Propane, Methane, Coal Gas
All parameters above subject to change without prior notice
