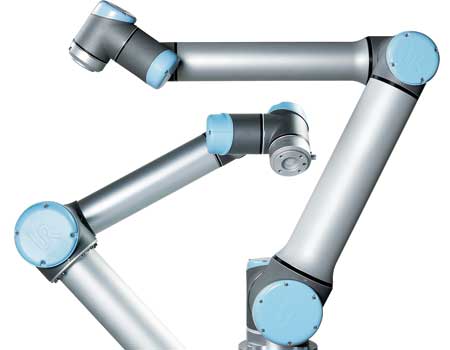

Universal Robots UR10 UR5


Welcome to ACTECH - Universal Robots

ACTECH is now an authorized distributor for Universal Robots, a company that has developed a highly-specialized, low-cost robotic arm to streamline your production. We offer a complete robotic automation solution tailored exactly to your requirements.









Gain the competitive edge with our flexible, low-cost robot arms!

Precise. Collaborative. Easy to use.

From the small machine shop to the auto assembly line, Universal Robots spans a multitude of industries. For anyone who makes a product and seeks to automate production, we can help you do it faster, easier, and more affordably.

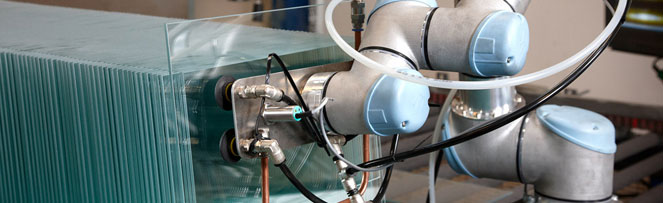

Robot case

All robots are not created equal

Let’s face it — most robots are big, expensive, and clunky. At Universal Robots we have developed a highly-specialized, low-cost robotic arm to streamline your production process. Like an extra colleague, the robot can work right alongside employees with no safety guarding. The user-friendly software is a cinch to learn and installation can be done in under an hour.

So, whether its capping jars at a food & beverage factory, packing small parts into assembly boards, or tightening screws at an automotive facility, our robots are on the cutting edge of industrial automation.

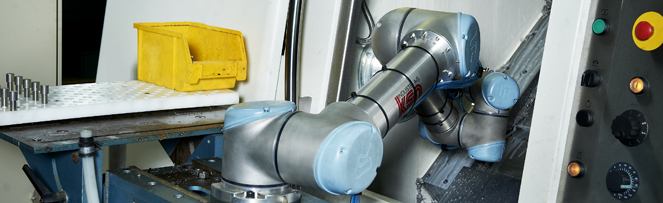

Robot case

Collaborative Robot Solutions

Revolutionary products that give your company a competitive edge

Smart. Fast. Flexible. Affordable

The noisy, clunky, expensive robot is a thing of the past. At Universal Robots we are looking toward the future while offering smart solutions for today’s industries.

Our innovative robot arms make it easy and affordable to automate your production process. The lightweight robots can be moved easily around your production area, and a simple user interface is a snap to learn. Your robot can be up and running in less than hour — even by inexperienced users.

Our products, the UR5 and the UR10, can handle payloads of up to 5 and 10 kilos respectively.

Robot case

No need for safety guarding

Since Universal Robots’ robotic arms are in compliance with the ISO standard for collaborative robots, they can work right alongside employees without safety guarding. They also offer unparalleled performance in precision handling, flexibility, and payload.

Quick Payback

Our robots are designed for a wide range of industries from small machine shops and to large-scale automotive assembly lines. Regardless of the size of the business, our clients enjoy a rapid return on their investment.

                                                                                 Technical specifications UR5
Description Parameter
Weight 18.4 kg / 40.6 lbs
Payload 5 kg / 11 lbs
Reach: 850 mm / 33.5 in
Joint ranges: +/- 360° on all joints
Speed: Joint: Max 180°/sec. Tool: Approx. 1 m/sec. / Approx. 39.4 in/sec.
Repeatability: +/- 0.1 mm / +/- 0.0039 in (4 mil)
Footprint: Ø149 mm / 5.9 in
Degrees of freedom: 6 rotating joints
Control box size (WxHxD): 475 mm x 423 mm x 268 mm / 18.7 x 16.7 x 10.6 in
I/O ports: 10 digital in, 10 digital out, 4 analogue in, 2 analogue out
I/O power supply: 24 V 1200 mA in control box and 12 V/24 V 600 mA in tool
Communication: TCP/IP 100 Mbit: IEEE 802.3u, 100BASE-TX Ethernet socket & Modbus TCP
Programming: Polyscope graphical user interface on 12 inch touchscreen with mounting
Noise: Comparatively noiseless
IP classification: IP54
Power consumption: Approx. 200 watts using a typical program
Collaboration operation: Tested in accordance with sections 5.10.1 and 5.10.5 of EN ISO 10218-1:2006
Materials: Aluminium, ABS plastic
Temperature: The robot can work in a temperature range of 0-50°C
Power supply: 100-240 VAC, 50-60 Hz
Calculated Operating Life: 35,000 Hours
6 metre / 236 in cable between robot and control box
4,5 metre / 177 in cable between touchscreen and control box
                                                                                 Technical specifications UR10
Description Parameter
Weight 28.9 kg / 63.7 lb
Payload 10 kg / 22 lbs
Reach: 1300 mm / 51.2 in
Joint ranges: +/- 360° on all joints
Speed: Joint: Max 120/180°/sec. Tool: Approx. 1 m/sec. / Approx. 39.4 in/sec.
Repeatability: +/- 0.1 mm / +/- 0.0039 in (4 mil)
Footprint: Ø190 mm / 7.5 in
Degrees of freedom: 6 rotating joints
Control box size (WxHxD): 475 mm x 423 mm x 268 mm / 18.7 x 16.7 x 10.6 in
I/O ports: 10 digital in, 10 digital out, 4 analogue in, 2 analogue out
I/O power supply: 24 V 1200 mA in control box and 12 V/24 V 600 mA in tool
Communication: TCP/IP 100 Mbit: IEEE 802.3u, 100BASE-TX Ethernet socket & Modbus TCP
Programming: Polyscope graphical user interface on 12 inch touchscreen with mounting
Noise: Comparatively noiseless
IP classification: IP54
Power consumption: Approx. 350 watts using a typical program
Collaboration operation: Tested in accordance with sections 5.10.1 and 5.10.5 of EN ISO 10218-1:2006
Materials: Aluminium, ABS plastic
Temperature: The robot can work in a temperature range of 0-50°C
Power supply: 100-240 VAC, 50-60 Hz
Calculated Operating Life: 35,000 Hours
6 metre / 236 in cable between robot and control box
4,5 metre / 177 in cable between touchscreen and control box
