Nano 1212 CNC Cutting Machine manufacturing system was in place with highly efficient assembly line which allows a mass production. In consequence, we have reduced the production cost substantially. Yet, increase of production volume lead an increase of purchase bargaining power. The saving in purchasing in bulk becomes more significant accordingly to the drastic increase of machine that we produce.

While research and designing stage, one of the crucial factors is on delivery cost. Nano Series was designed as a ‘folderable’ machine which reduces the space of shipping case. This design solves loads of shipping problem and yet gaining in the drastic reduction of shipping expenses.

All these cost savings ultimately brought NANO 1212 CNC Machine’s price to unbelievable level.

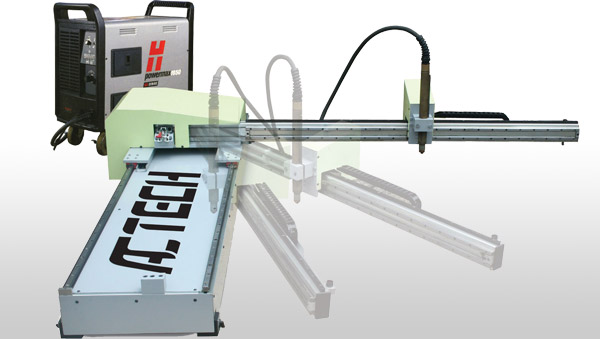

Nano1212 Cantilever Design is more flexible and user friendly. The Cantilever design provides the following benefits:

• ‘Folderable’ • Easier access to the head • Fast set up • Smaller footprint • Ability to load oversized plates • Easy unloading or part picking

• May install either plasma or flame (oxy-acetylene) torch
• Extruded aluminum profile as gantry structures.
• Linear motion guide for both x, y axes
• Rack & Pinion (Gear-Wheel) Transmission for X & Y axes
• May mount either plasma or flame torch

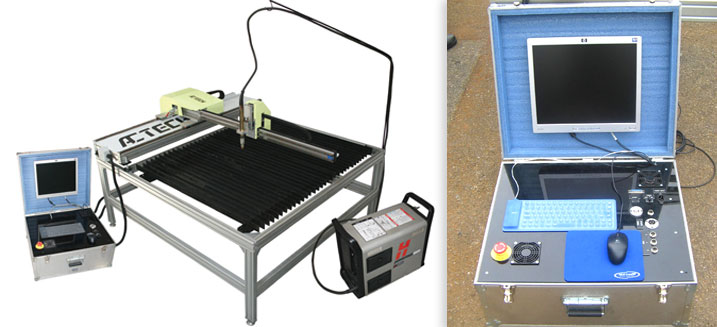

• Included cnc controller (interfaced with branded PC) which designed into a single suitcase
• CNC Controller Specification:17” LCD Monitor, keyboard, Optical Mouse, USB-Port, Hard Drive and 512MB RAM
• Uses F.I.A.-274D G-Code, Feed overrides on the fly, Manually run G/M code from MDI Screen (one line code). The input can be saved in a CNC File
• ‘Plug-n-play’ Interfacing between controller and machine
• Least set-up time
• Japan/USA Stepper motor & Drives for all axes
• Magnetic positioning device ease the machine relocation in just a ‘click’
• ‘Folderable’ gantry lead to space saving
• Lighter weight which ease shifting from one to another working site
• Wheeled structure designed let machine shifting with only one manpower
• Inclusive of ICAM Software (Licensed)
• Inclusive of Window-Based PC Controller with CMC4 Controller Software (Licensed)

• Z-axis motorized lifting station
• Intelligent Digital Height Control (IDHC)
• NANO Series Machine Table with Slotted slat support brackets

The Leader In Affordable CNC Technology
